MR112F16-B-150_刮板輸送鏈
|

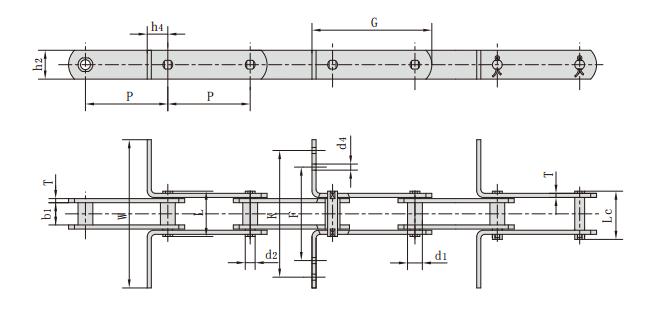

鏈條型號 |
節距 |
套筒直徑 |
內節內寬 |
銷軸直徑 |
銷軸長度 |
抗拉強度 |
平均抗拉強度 |
每米長重 |
|
P |
d1 |
b1 |
d2 |
L |
Lc |
Q |
Q0 |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
kN/Ibf |
kN |
kg/m |
|
MR112F16-B-150 |
150.0 |
21.0 |
32.00 |
15.00 |
64.5 |
69.0 |
112.0/27272 |
123.2 |
6.69 |
|
鏈條型號 |
G |
F |
W |
K |
h4 |
h2 |
d4 |
T |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
MR112F16-B-150 |
210.0 |
100.0 |
240.0 |
200.0 |
35.00 |
40.0 |
9.0 |
6.0 |
